The New Generation of

YARD/TERMINAL TRACTORS

YT SERIES

  • The new generation Terberg YT193/YT223 Yard/Terminal Tractors are even more durable and easier to service and update. Operators experience the highest level of comfort and ergonomics.
  • The new YT is extremely robust and durable. It has been tested extensively in test labs and on the test track. The chassis is anti-corrosion hot dip galvanized.

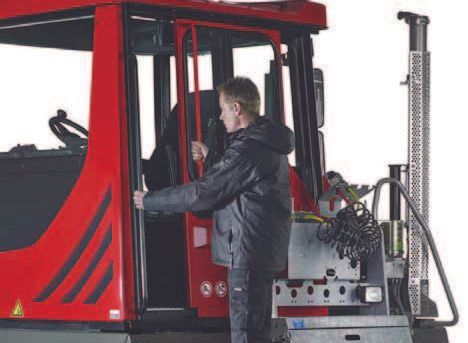

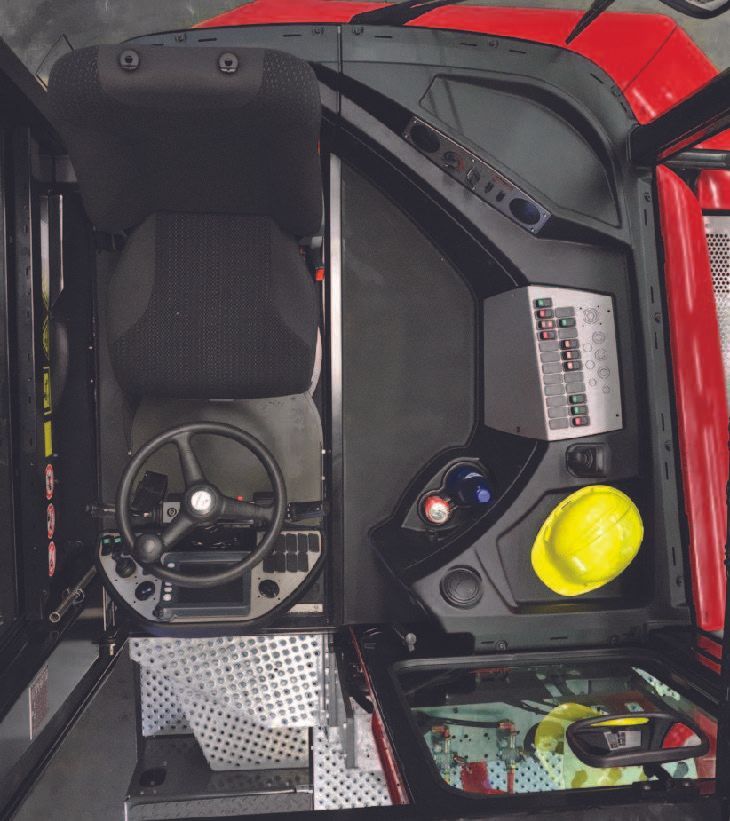

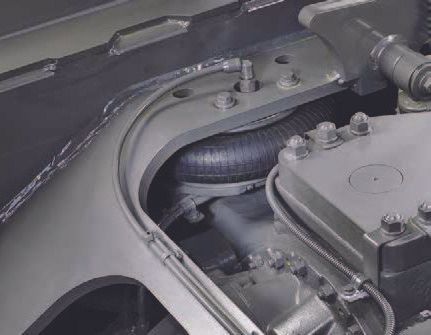

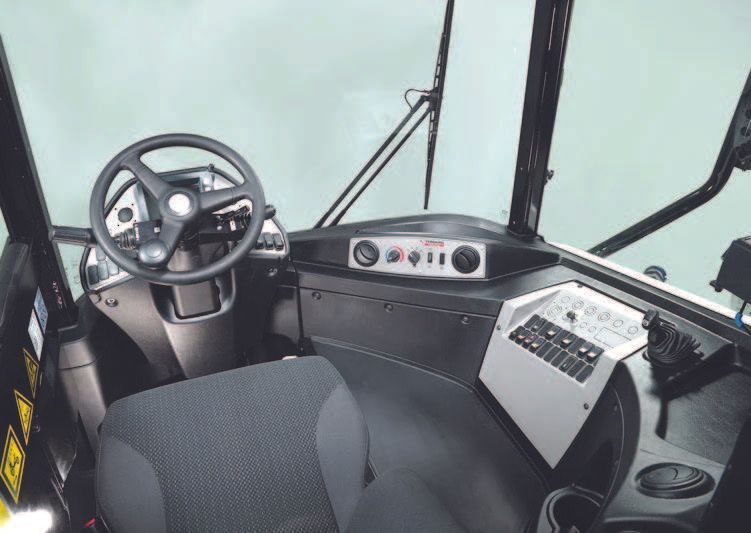

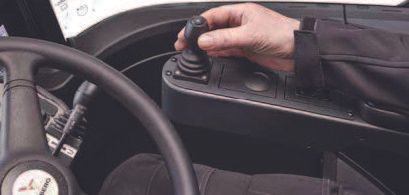

  • The cab has been completely redesigned. New fingertip controls are positioned directly next to the seat. The cabin suspension is particularly comfortable and similar to that used in road trucks.

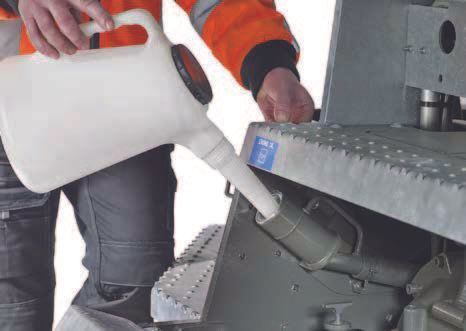

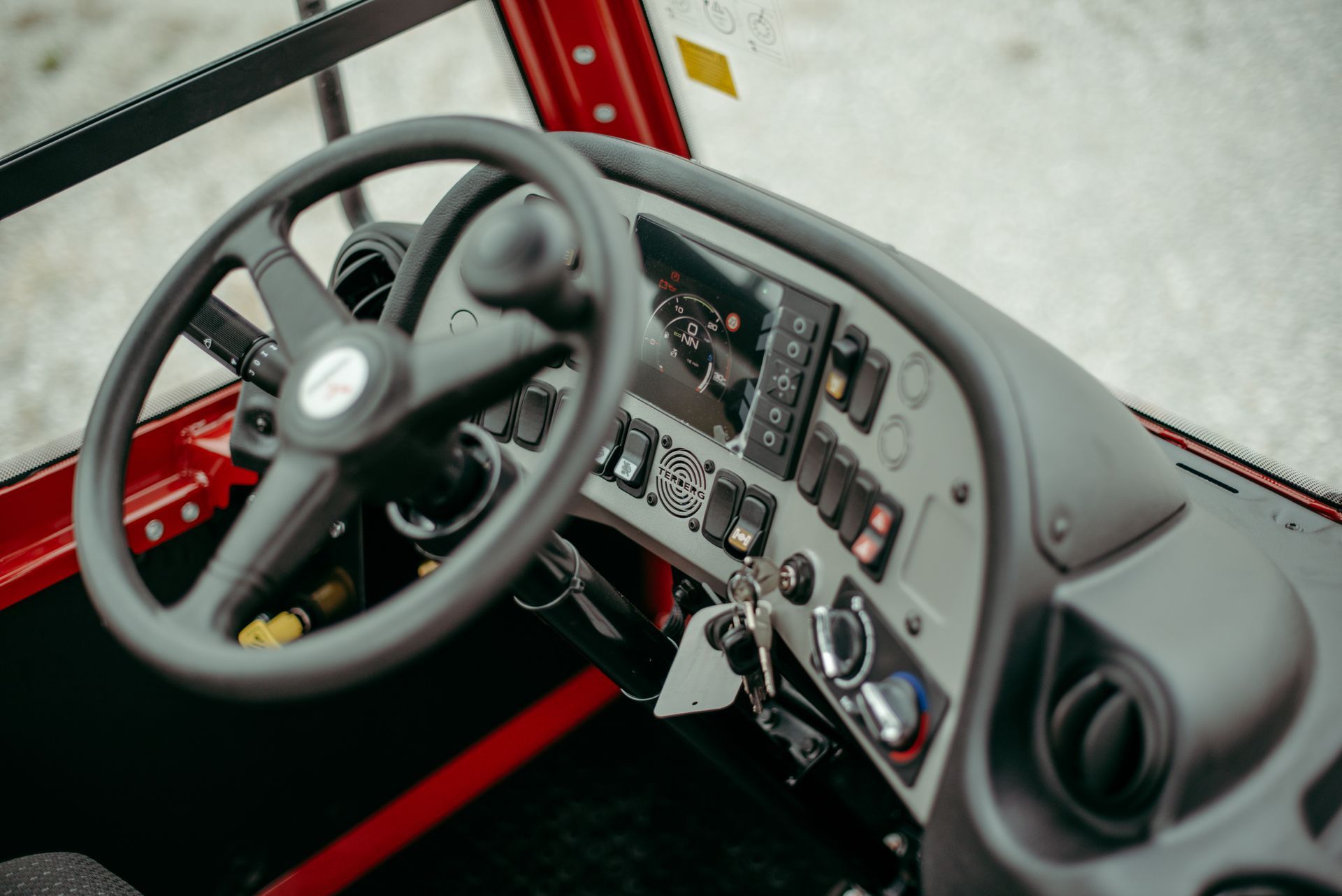

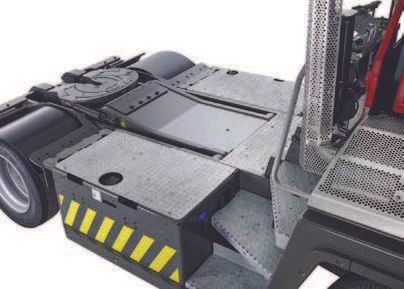

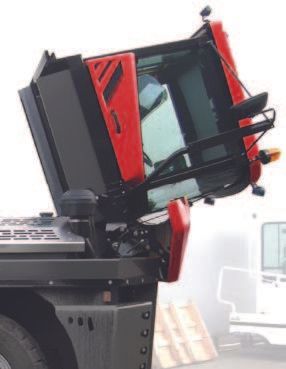

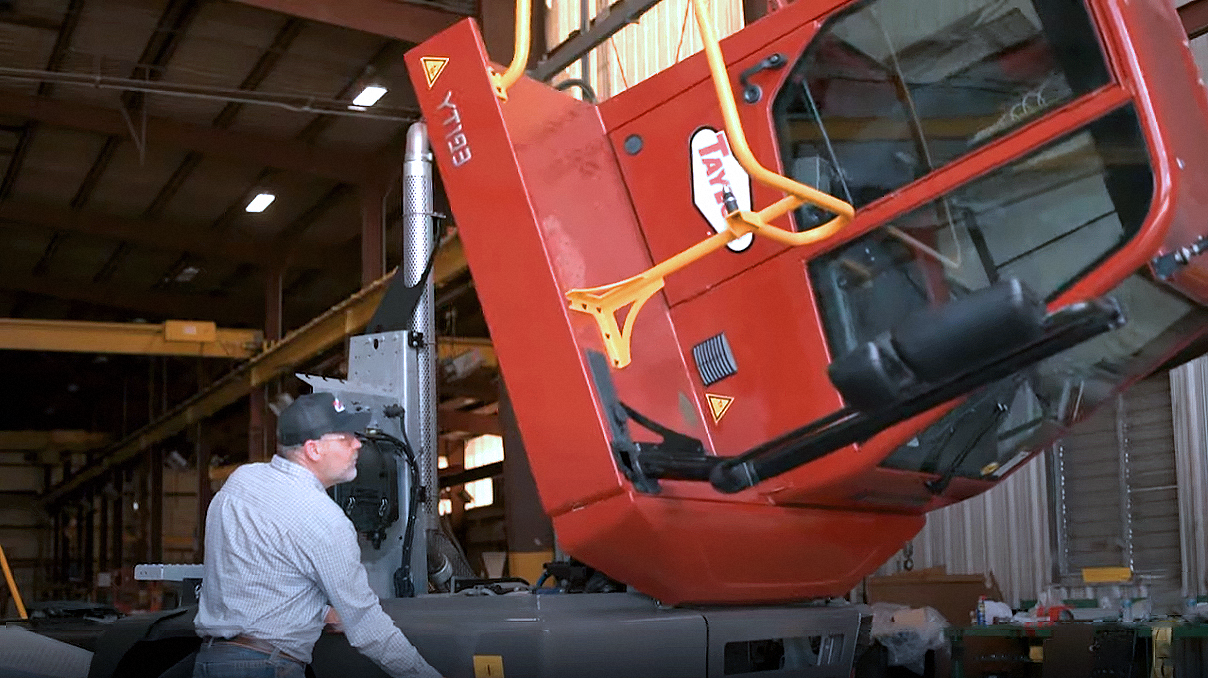

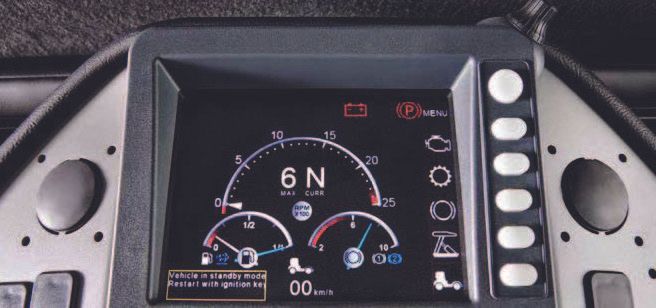

  • The accessibility of mechanical and electrical components throughout the vehicle has greatly improved. The dashboard can be removed and refitted within minutes. Also repair is more efficient. Covers, bumpers and windows are easy to replace.

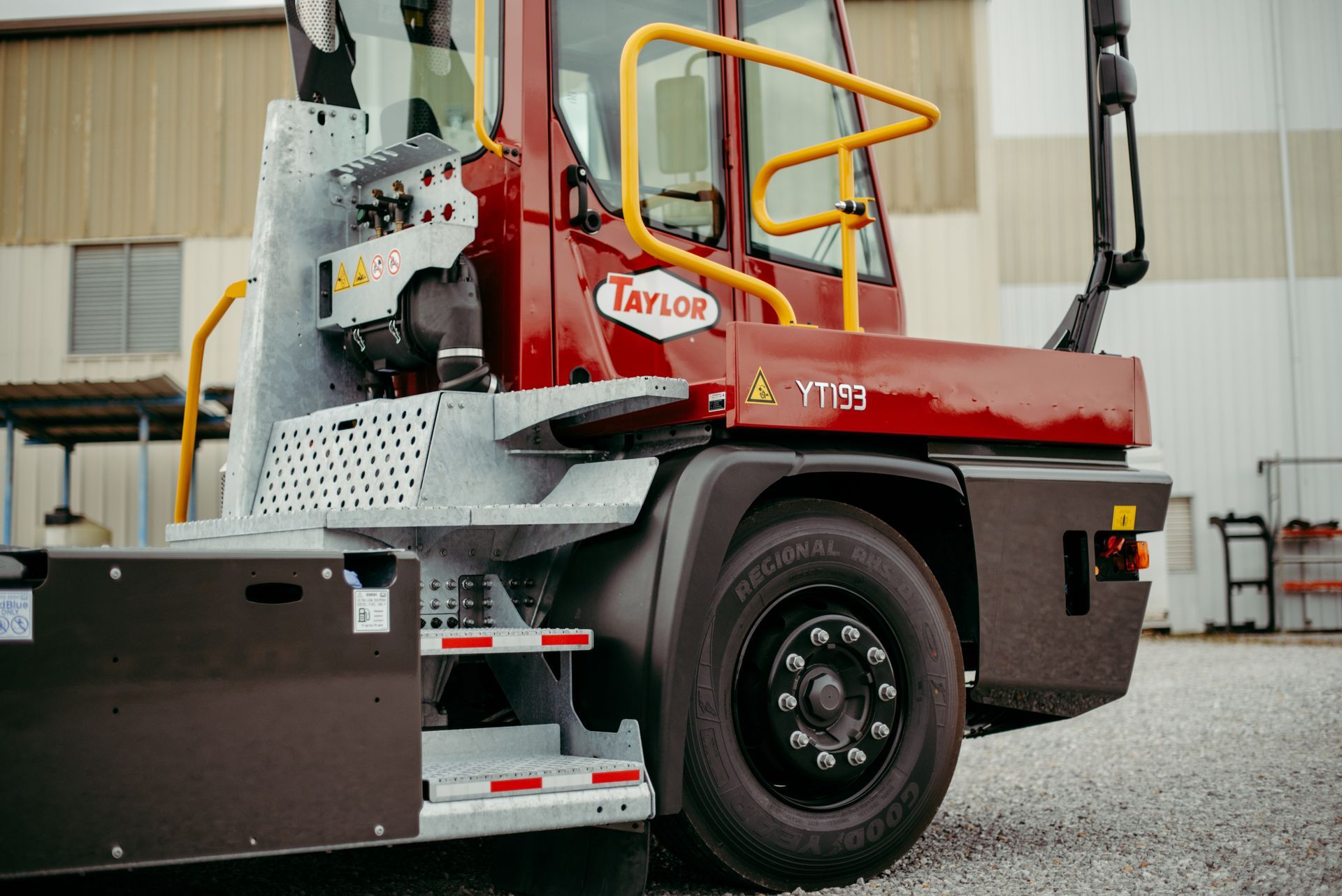

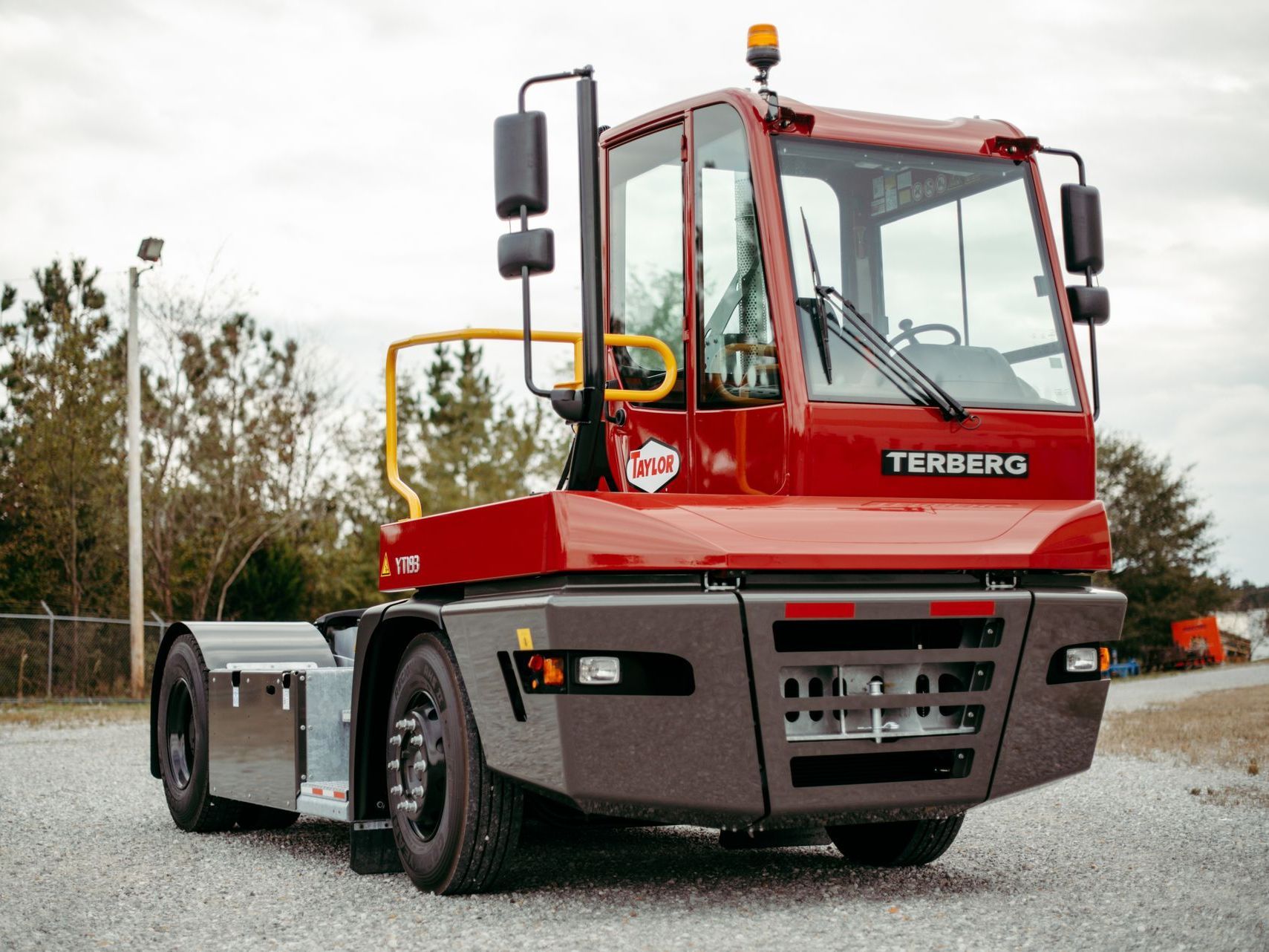

YT193 / YT223

Terminal Tractor

The T2 4X2 Off Road terminal tractor is designed to efficiently move trailers from spot to spot within a confined yard. Kalmar Ottawa’s has a track record of trusted durability, improved serviceability and driver comfort.

  • QUICK SPECS:

    GCW YT193: 165,000 lbs *

    GCW YT223: 198,000 lbs *

    Driveline: 4 x 2

    YT193: Cummins B6.7-190 hp Tier4F

    YT223: Cummins B6.7-225 hp Tier4F

    Transmission: Allison 3000 (4/5F-1R)

    Front Axle Capacity: 24,250 lbs @12 mph

    Rear Axle Capacity: 66,000 lbs @12 mph

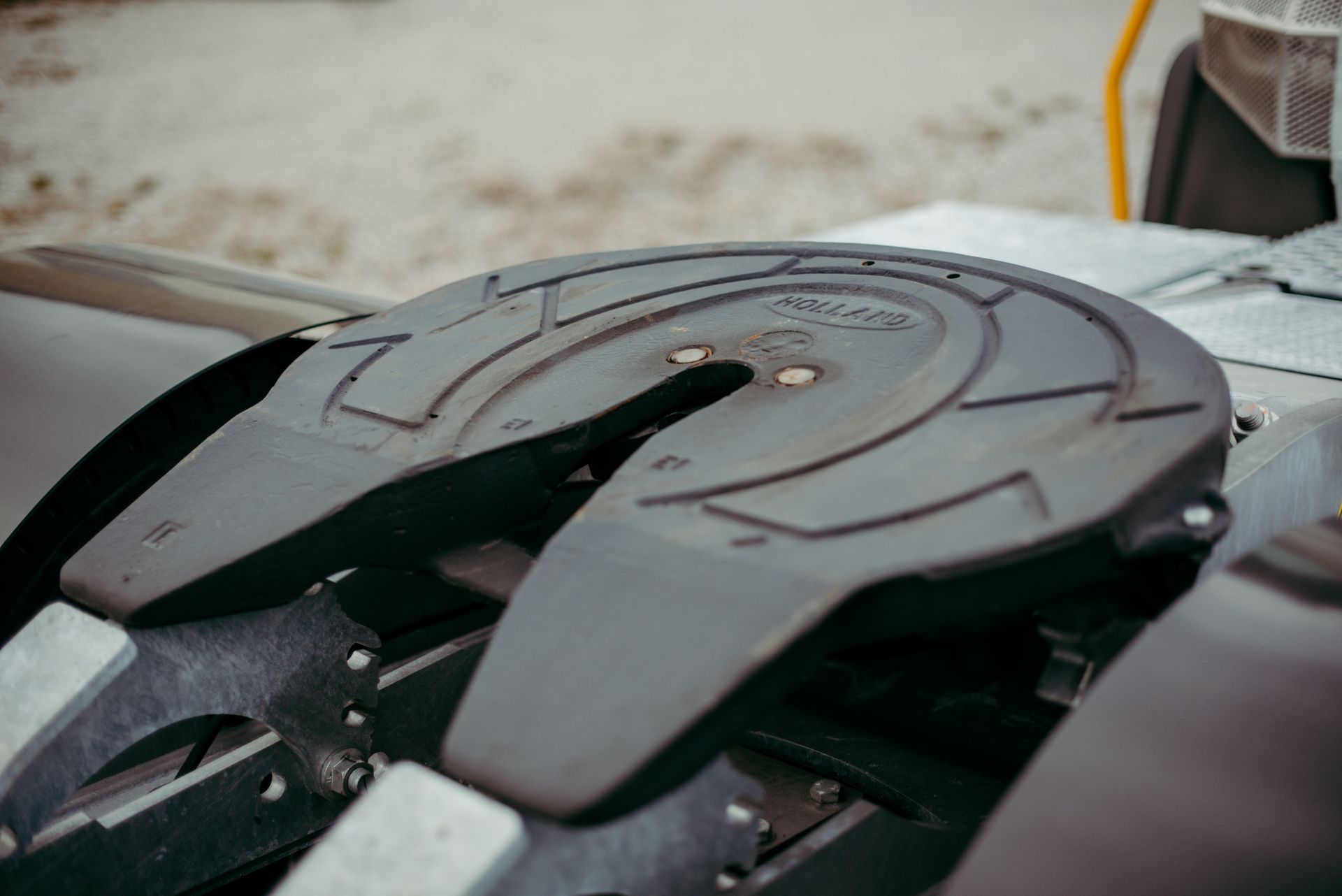

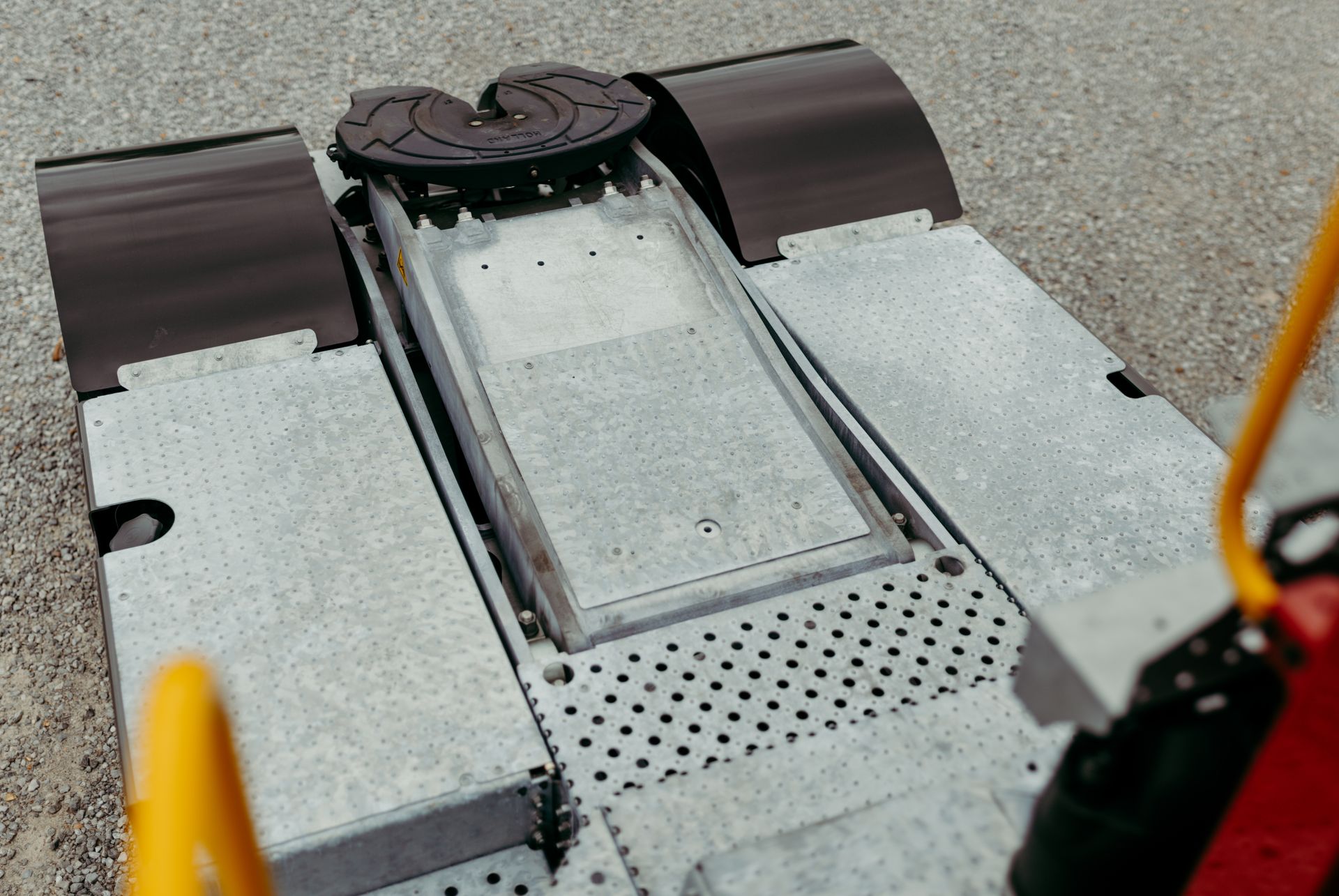

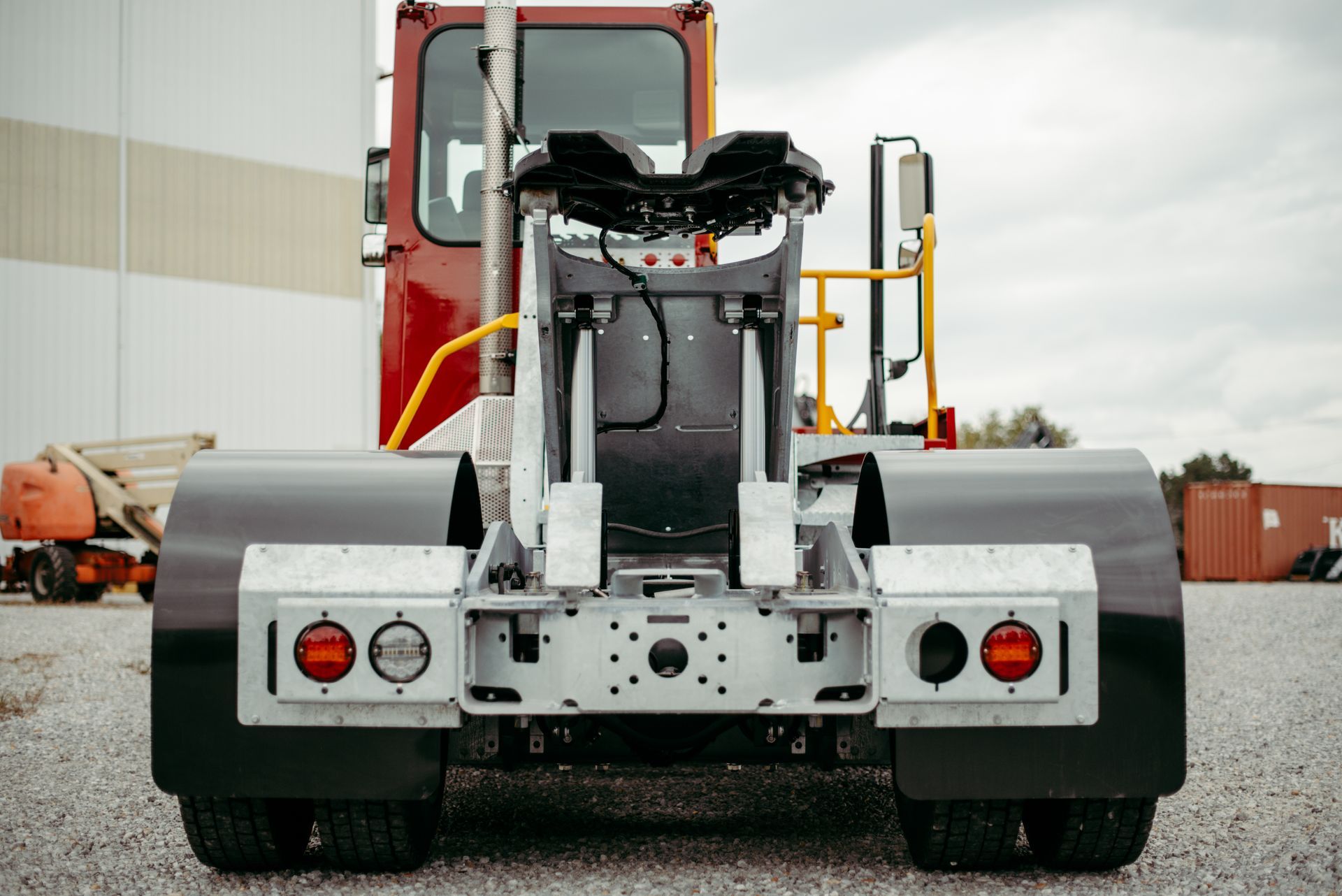

    5th Wheel: Terberg cast steel plate 2 in

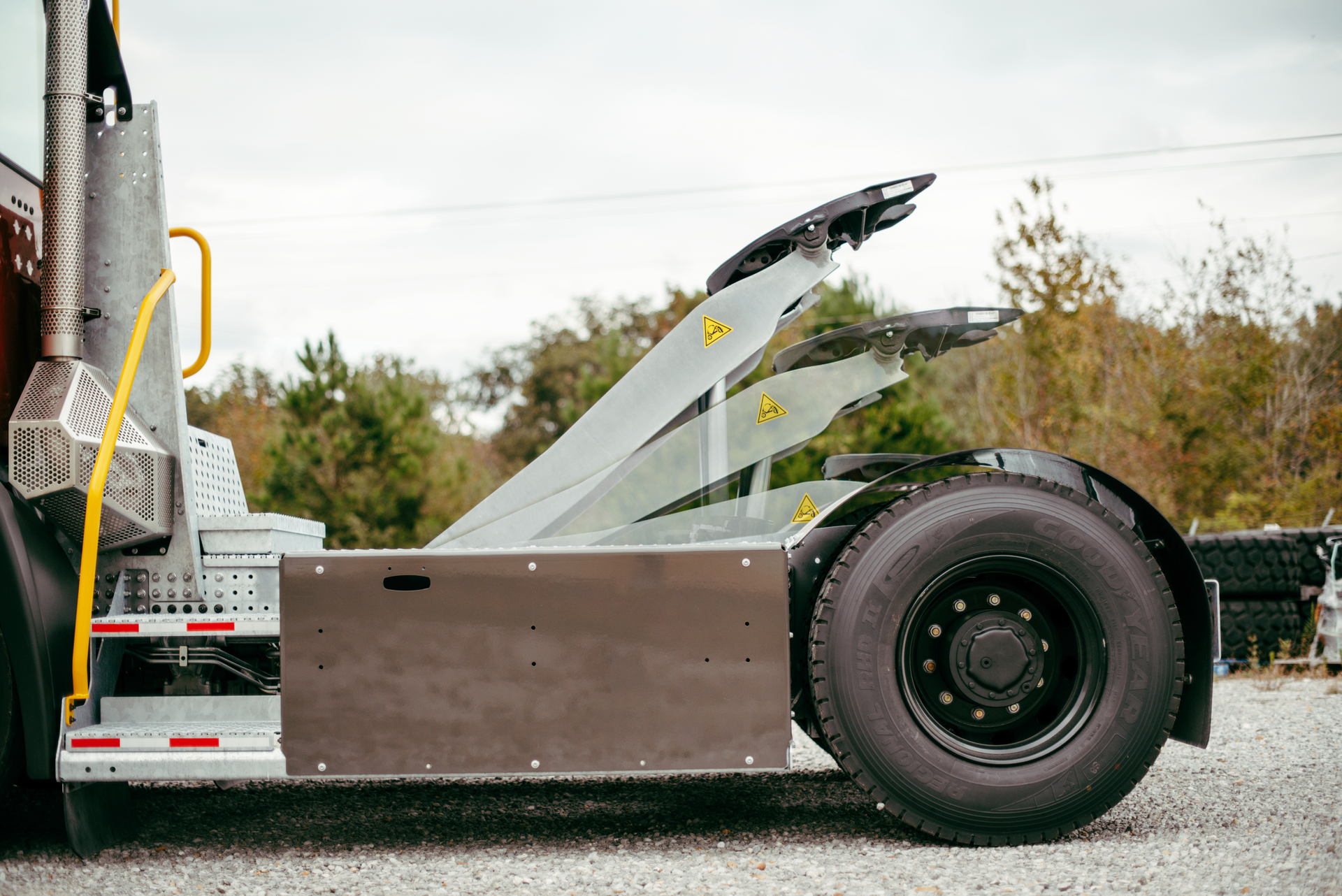

    5th Wheel Lifting Capacity: 80,000 lbs *

    Lowest 5th Wheel Height *

    Seat Forward Facing

    * Depending on how equipped and operating conditions

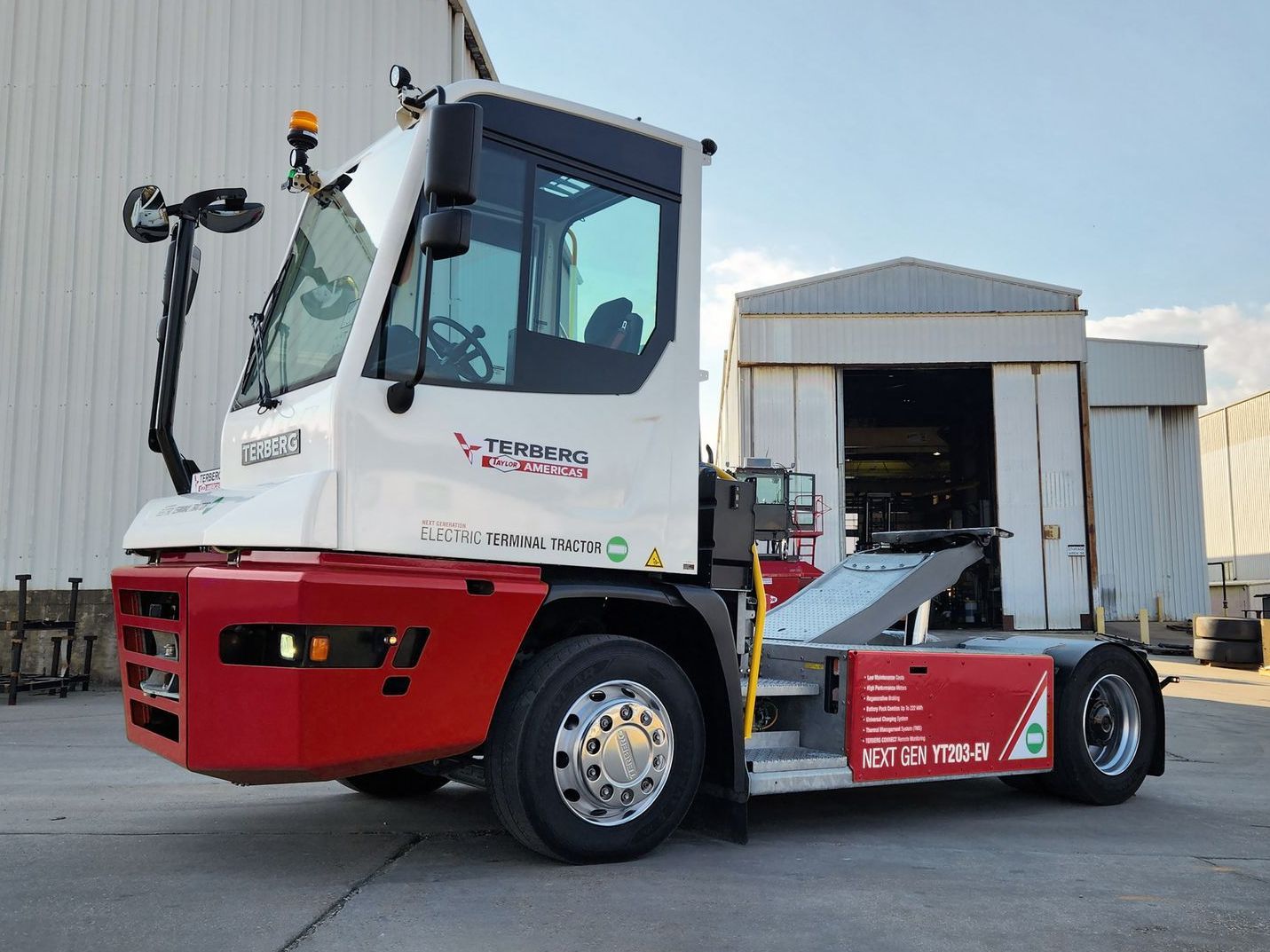

YT203 Electric

Terminal Tractor

The performance of the new electric drive system is comparable with that of diesel engines and the large battery option offers a significantly greater operating range. The new battery technology has an extended temperature range and can be used worldwide in both very cold and warm climates.

  • QUICK SPECS:

    • Driveline: 4 x 2
    • GCW 158,000 lbs - 256,000 lbs (depending on axle ratio and operating conditions)
    • Battery pack combination options up to 222 kWh
    • The charger connector complies with CCS1.0 automotive standard
    • Regenerative braking
    • Batteries and vehicle comply with ECE-R100 rev. 2
    • Suitable for worldwide operation -22˚F up to +122˚F
    • Traction motor: ZF CeTrax
    • Front axle capacity: 24,000 lbs @12 mph
    • Rear axle capacity: 84,000 lbs @12 mph
    • 5th wheel: Terberg cast steel plate 2”
    • 5th wheel lifting capacity: up to 80,000 lbs*
    • Lowest 5th wheel height *
    • Forward-facing seat
    • Left and right-hand drive available
    • Terberg Connect Tractor Telematics

    * Depending on how equipped and operating conditions

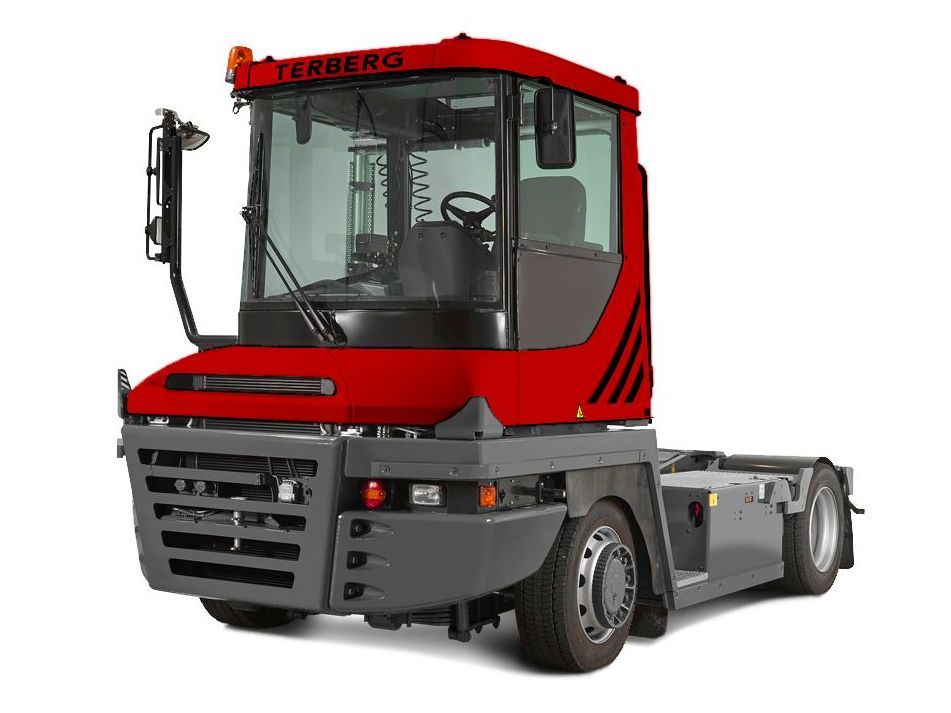

RT223/283/323

Terminal Tractor

The 4x4 drive Terberg RT223/283/323 RoRo tractors with Ergoturn® 180° swivelling seat are designed for operating in RoRo vessels with steep ramps and in industrial yards because of their robust design and powerful driveline.



  • QUICK SPECS:

    RT223: Volvo TAD870VE-215 hp (Tier4F)

    RT283: Volvo TAD872VE-282 hp (Tier4F)

    RT323: Volvo TAD873VE-315 hp (Tier4F)

    RT223 GCW: 330,000 lbs *

    RT283/323 GCW: 364,000 lbs *

    Driveline: 4x4 (optional 4x2)

    Planetary Hub Axles: Kessler

    Transmission: ZF 6WG211 (6F-3R)

    Front axle capacity: 36,000 lbs @12 mph

    Rear axle capacity: 48,000 lbs @12 mph

    5th wheel: Terberg cast steel plate 2 in

    5th wheel lifting capacity: 78,000 lbs *

    * Depending on how equipped and operating conditions

RT403 - 4x4 Heavy Duty Tractors

MOVING HEAVY LOADS

  • Terberg heavy duty tractors are used in many industries for transporting loads of up to 442,000 lbs Gross Combined Weight (GCW).
  • Our industrial customers appreciate the robustness and reliability of our products. The ease of maneuvering and the swiveling seats are particularly useful when working in crowded yards or inside buildings.

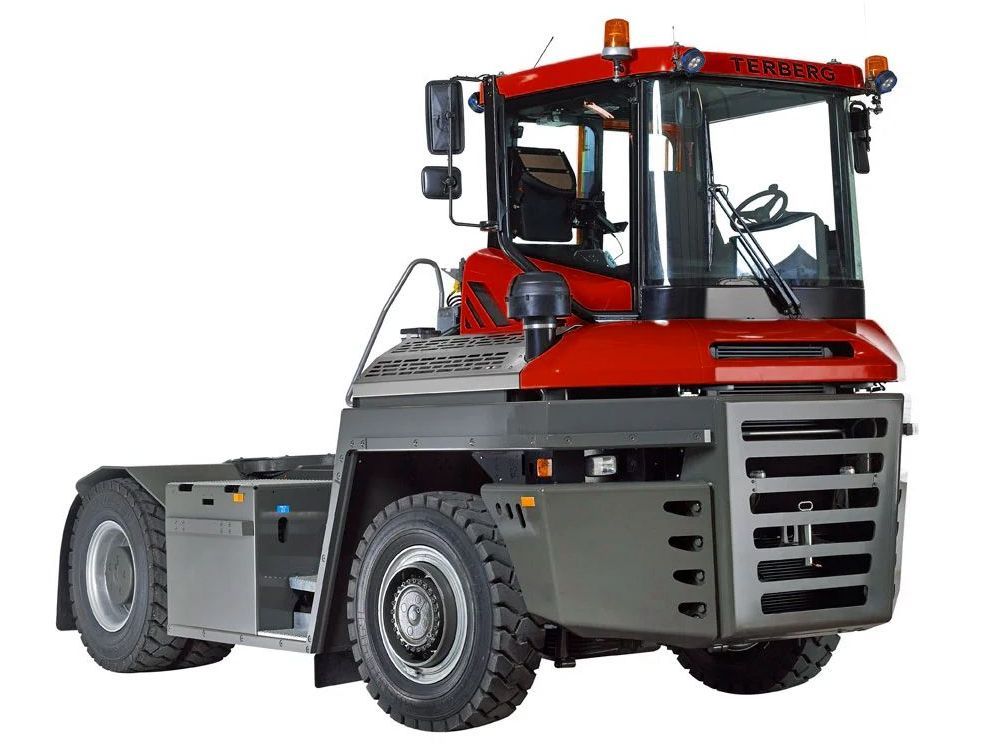

RT403

4x4 Heavy Duty Tractors

The Terberg RT403 is designed for extremely demanding applications in ports, steelworks and other industrial plants. Its fifth wheel lifting capacity of 99,000-lbs and heavy-duty chassis and power-train design make this the perfect choice for the steel industry, extremely heavy RORO operations and handling MTS trains.

  • QUICK SPECS:

    Driveline: 4 x 4

    GCW: 442,000 lbs *

    Engine: Volvo TAD1172VE-388 hp Tier4F

    Transmission: ZF 6WG310 (6F-3R)

    Front axle capacity: 44,000 lbs @12 mph

    Front axle capacity: 56,000 lbs @6 mph

    Rear axle capacity: 99,000 lbs @12 mph

    Rear axle capacity: 106,000 lbs @6 mph

    5th wheel: 2 in Cardanic cast steel plate

    5th wheel lifting capacity: 100,000 lbs *

    Lowest 5th wheel height: 53 in

    Ergoturn® 180° swivelling seat


    * Depending on how equipped and operating conditions
