High Capacity Cushion Tire Forklifts

Taylor Cushion Tire Forklifts are designed for smooth surface applications. Whether in a factory or warehouse environment Taylor Cushion Tire Lift Trucks provide unparalleled performance and maneuverability.

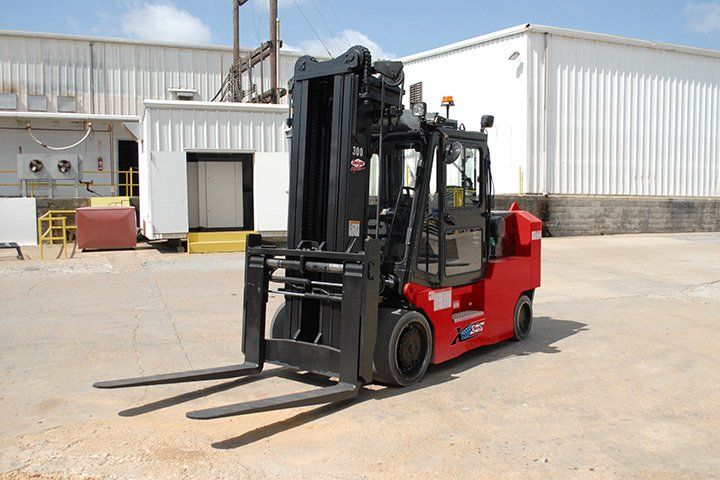

XHC-250S

Capacity: 25,000-lbs
Wheelbase: 96.0-in.
Load Center: 24-in.
Engine: QSB4.5-C140 T4F
The XHC-250S cushion tire forklift is built to meet the needs of the Steel, Aluminum, Automotive and Rigging Industries.

  • FEATURES:

    Quick Specs:

    • Capacity: 25000 lbs / 11340 kg
    • Capacity (MT): 11
    • Load Center (in): 24 in. / 610 mm
    • Wheelbase (in): 96.0 in. / 2438 mm
    • Engine: QSB4.5-C140 T4F
    • Transmission: TC-32 3-sp.
    • Mast (ft/Type): 8-ft Direct Lift
    • Carriage Att. (in/Type): C-58
    • Forks (in): 3x8x48
    • Brake Type: Air
    • Volts: 12
    • Tires: Drive: 28 x 16 x 22 Solid; Steer: 22 x 9 x 16 Solid

    BASIC TRUCK INCLUDES:

    • Cummins QSB4.5L-C140 HP Tier 4F Diesel Engine
    • Lockable Fuel Cap w/Strainer
    • Muffler w/Stack Guard
    • 12-Volt Electrical System w/100 Amp Alternator
    • Heavy-duty Battery
    • Anti-restart Ignition Switch
    • Tilt Steering
    • Lighted Instruments
    • Electric Horn
    • Keyswitch-actuated Amber Strobe Light
    • Reverse-actuated Backup Alarm
    • Forward Alarm
    • Rear View Mirrors
    • Power Transmission - 3 speed w/Inching, Modulated, Electric Shift Control
    • Taylor Steer Axle
    • Planetary Drive Axle
    • Air Brakes
    • Hydrostatic Power Steering
    • Pilot Operated Controls
    • Center Mount Operator Station and Overhead Guard w/Skyview Window and Rear Windshield
    • Adjustable Vinyl Covered Mechanical Suspension Seat w/ Flip down, Adjustable-angle Arm Rest and Seat Belt
    • Drive Tires: 28 x 16 x 22 Poly
    • Steer Tires: 22 x 9 x 16 Poly
    • Hydraulic Strainers and Filters in Tank
    • Accumulator in Lift Circuit
    • 2-Stage Direct Lift Mast (40-in. of Free Lift... 100-in. Overall Height Lowered)
    • 58-in. Basic Carriage (For Telescopic Direct Lift Mast)
    • 3 x 8 x 48-in. Forks

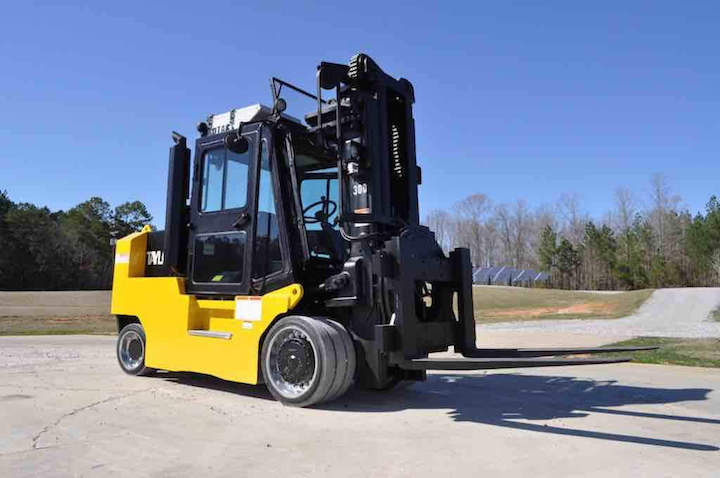

XHC-300S

Capacity: 30,000 lbs.
Wheelbase: 96.0-in.
Load Center: 24-in.
Engine: QSB4.5-C140 T4F
The XHC-300S cushion tire forklift is built to meet the needs of the Steel, Aluminum, Automotive and Rigging Industries.

  • FEATURES:

    Quick Specs:

    • Capacity: 30000 lbs / 13608 kg
    • Capacity (MT):
    • Load Center (in): 24 in. / 610 mm
    • Wheelbase (in): 96.0 in. / 2438 mm
    • Engine: QSB4.5-C140 T4F
    • Transmission: TC-32 3-sp.
    • Mast (ft/Type): 8-ft. Direct Lift
    • Carriage Att. (in/Type): C-58
    • Forks (in): 3x8x48
    • Brake Type: Air
    • Volts: 12
    • Tires: Drive: 28 x 16 x 22 Solid; Steer: 22 x 9 x 16 Solid

    BASIC TRUCK INCLUDES:

    • Cummins QSB4.5L-C140 HP Tier 4F Diesel Engine
    • Lockable Fuel Cap w/Strainer
    • Muffler w/Stack Guard
    • 12-Volt Electrical System w/100 Amp Alternator
    • Heavy-duty Battery
    • Anti-restart Ignition Switch
    • Tilt Steering
    • Lighted Instruments
    • Electric Horn
    • Keyswitch-actuated Amber Strobe Light
    • Reverse-actuated Backup Alarm
    • Forward Alarm
    • Rear View Mirrors
    • Power Transmission - 3 speed w/Inching, Modulated, Electric Shift Control
    • Taylor Steer Axle
    • Planetary Drive Axle
    • Air Brakes
    • Hydrostatic Power Steering
    • Pilot Operated Controls
    • Center Mount Operator Station and Overhead Guard w/Skyview Window and Rear Windshield
    • Adjustable Vinyl Covered Mechanical Suspension Seat w/ Flip down, Adjustable-angle Arm Rest and Seat Belt
    • Drive Tires: 28 x 16 x 22 Poly
    • Steer Tires: 22 x 9 x 16 Poly
    • Hydraulic Strainers and Filters in Tank
    • Accumulator in Lift Circuit
    • 2-Stage Direct Lift Mast (40-in. of Free Lift... 100-in. Overall Height Lowered)
    • 58-in. Basic Carriage (For Telescopic Direct Lift Mast)
    • 3 x 8 x 48-in. Forks

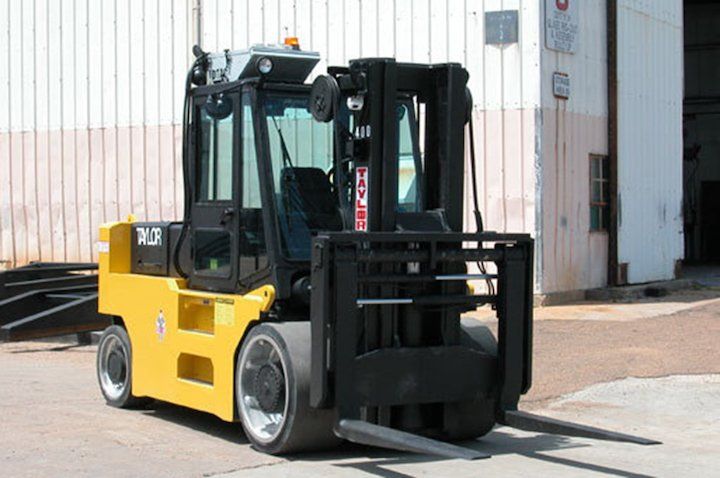

XHC-400L

Capacity: 40,000 lbs.
Wheelbase: 110.0-in.
Load Center: 30-in.
Engine: QSB6.7-C173 T4F
The XHC-400L cushion tire forklift is built to meet the needs of the Steel, Aluminum, Automotive and Rigging Industries.

  • FEATURES:

    Quick Specs:

    • Capacity: 40000 lbs / 18144 kg
    • Capacity (MT):
    • Load Center (in): 30 in. / 762 mm
    • Wheelbase (in): 110.0 in. / 2794 mm
    • Engine: QSB6.7-C173 T4F
    • Transmission: TC-32 3-sp.
    • Mast (ft/Type): 8-ft. Direct Lift
    • Carriage Att. (in/Type): C-65
    • Forks (in): 3.5x8.7x60
    • Brake Type: Air
    • Volts: 12
    • Tires: Drive: 36 x 20 x 30 Solid; Steer: 28 x 12 x 22 Solid

    BASIC TRUCK INCLUDES:

    • Cummins QSB6.7L-C173 HP Tier 4F Diesel Engine
    • Lockable Fuel Cap w/Strainer
    • Muffler w/Stack Guard
    • 12-Volt Electrical System w/130 Amp Alternator
    • Heavy-duty Battery
    • Anti-restart Ignition Switch
    • Tilt Steering
    • Lighted Instruments
    • Electric Horn
    • Keyswitch-actuated Amber Strobe Light
    • Reverse-actuated Backup Alarm
    • Forward Alarm
    • Rear View Mirrors
    • Power Transmission - 3 speed w/Inching, Modulated, Electric Shift Control
    • Taylor Steer Axle
    • Planetary Drive Axle
    • Air Brakes
    • Hydrostatic Power Steering
    • Pilot Operated Controls
    • Center Mount Operator Station and Overhead Guard w/Skyview Window and Rear Windshield
    • Adjustable Vinyl Covered Mechanical Suspension Seat w/ Flip down, Adjustable-angle Arm Rest and Seat Belt
    • Drive Tires: 36 x 20 x 30 Poly
    • Steer Tires: 28 x 12 x 22 Poly
    • Hydraulic Strainers and Filters in Tank
    • Accumulator in Lift Circuit
    • 2-Stage Direct Lift Mast (40-in. of Free Lift... 109-in. Overall Height Lowered)
    • 65-in. Basic Carriage (For Telescopic Direct Lift Mast)
    • 3.5 x 8 x 60-in. Forks

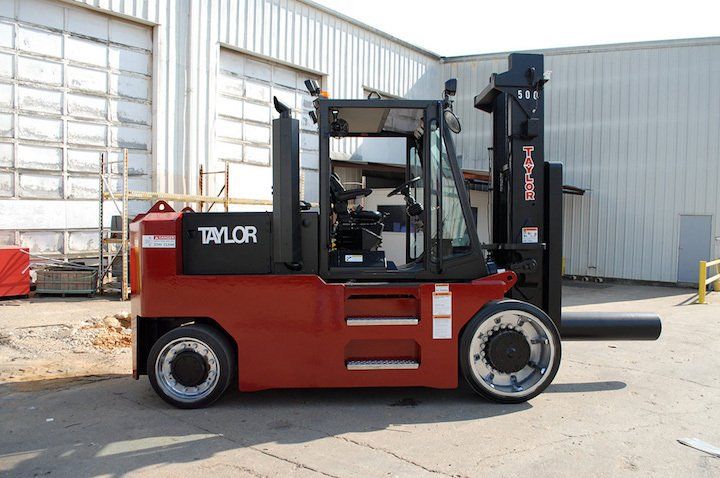

XHC-500L

Capacity: 50,000 lbs.
Wheelbase: 110.0-in.
Load Center: 30-in.
Engine: QSB6.7-C173 T4F
The XHC-500L cushion tire forklift is built to meet the needs of the Steel, Aluminum, Automotive and Rigging Industries.

  • FEATURES:

    Quick Specs:

    • Capacity: 50000 lbs / 22680 kg
    • Capacity (MT):
    • Load Center (in): 30 in. / 762 mm
    • Wheelbase (in): 110.0 in. / 2794 mm
    • Engine: QSB6.7-C173 T4F
    • Transmission: TC-32 3-sp.
    • Mast (ft/Type): 70" Rigid
    • Carriage Att. (in/Type): Ram
    • Forks (in): 12x48
    • Brake Type: Air
    • Volts: 12
    • Tires: Drive: 36 x 20 x 30 Solid; Steer: 28 x 12 x 22 Solid

    BASIC TRUCK INCLUDES:

    • Cummins QSB6.7L-C173 HP Tier 4F Diesel Engine
    • Lockable Fuel Cap w/Strainer
    • Muffler w/Stack Guard
    • 12-Volt Electrical System w/130 Amp Alternator
    • Heavy-duty Battery
    • Anti-restart Ignition Switch
    • Tilt Steering
    • Lighted Instruments
    • Electric Horn
    • Keyswitch-actuated Amber Strobe Light
    • Reverse-actuated Backup Alarm
    • Forward Alarm
    • Rear View Mirrors
    • Power Transmission - 3 speed w/Inching, Modulated, Electric Shift Control
    • Taylor Steer Axle
    • Planetary Drive Axle
    • Air Brakes
    • Hydrostatic Power Steering
    • Pilot Operated Controls
    • Center Mount Operator Station and Overhead Guard w/Skyview Window and Rear Windshield
    • Adjustable Vinyl Covered Mechanical Suspension Seat w/ Flip down, Adjustable-angle Arm Rest and Seat Belt
    • Drive Tires: 36 x 20 x 30 Poly
    • Steer Tires: 28 x 12 x 22 Poly
    • Hydraulic Strainers and Filters in Tank
    • Accumulator in Lift Circuit
    • Rigid Direct Lift Mast (65-in. of Free Lift... 147-in. Overall Height Lowered)
    • Integral Coil Ram Carriage
    • Coil Ram (12-ft. outside diameter, 48-in. length, top of ram is 22 inches from ground)

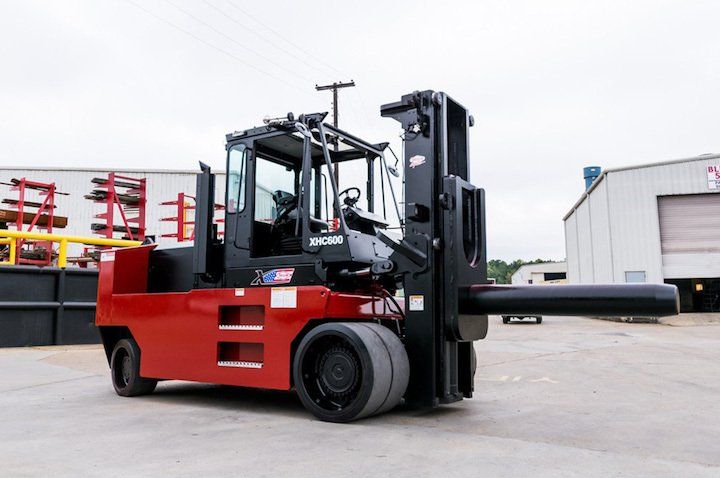

XHC-600L

Capacity: 60000 lbs.
Wheelbase: 125.0-in.
Load Center: 36-in.
Engine: QSB6.7-C173 4F
The XHC-600L cushion tire forklift is built to meet the needs of the Steel, Aluminum, Automotive and Rigging Industries.

  • FEATURES:

    Quick Specs:

    • Capacity: 60000 lbs / 27216 kg
    • Capacity (MT):
    • Load Center (in): 36 in. / 914 mm
    • Wheelbase (in): 125.0 in. / 3175 mm
    • Engine: QSB6.7-C173 4F
    • Transmission: TC-32 3-sp.
    • Mast (ft/Type): 9'
    • Carriage Att. (in/Type): C-88
    • Forks (in): 5x10x72
    • Brake Type: Hydraulic
    • Volts: 24
    • Tires: Drive: 36 x 28 x 30 Solid; Steer: 28 x 14 x 22 Solid;

    BASIC TRUCK INCLUDES:

    • Cummins QSB6.7L-C173 HP Tier 4 Final Electronic Diesel Engine
    • Lockable Fuel Cap w/Strainer
    • Muffler w/Stack Guard
    • 24-Volt Electrical System w/95 Amp Alternator
    • Heavy-duty Battery
    • Anti-restart Ignition Switch
    • Tilt Steering
    • Electric push button directional controls located on joystick
    • Taylor Integrated Control Systems(TICS) allows all machine data to be accessed through the main 7-in. diagonal touch screen full color display located in the cab.
    • Electric Horn
    • 4 LED Work Lights
    • Keyswitch-actuated Amber Strobe Light
    • Reverse-actuated Backup Alarm
    • Forward Alarm
    • Rear View Mirrors
    • TC-32 Transmission - 3 speed w/Inching, Modulated, Electric Shift Control
    • Taylor Steer Axle
    • Kessler Planetary Drive Axle (wet disc brakes)
    • Hydrostatic Power Steering
    • Center Mount Operator Station and Overhead Guard w/Skyview Window and Rear Windshield
    • Adjustable Vinyl Covered Air Suspension Seat w/ Flip down, Adjustable-angle Arm Rest and Seat Belt
    • Drive Tires: 36 x 28 x 30 Poly
    • Steer Tires: 28 x 14 x 22 Poly
    • Hydraulic Strainers and Filters in Tank
    • Accumulator in Lift Circuit
    • 2-Stage Telescopic Direct Lift Mast (56-in. of Free Lift... 130-in. Overall Height Lowered)
    • 88-in. Basic "C" Carriage
    • 5 x 10 x 72-in. Forks
