CLARK has one of the broadest product lines in the industry with five major lines. Trucks ranging from 1,500 to 18,000 pound capacities, LPG, gasoline, dual fuel, diesel, narrow-aisle stackers, electric riders and powered hand trucks.

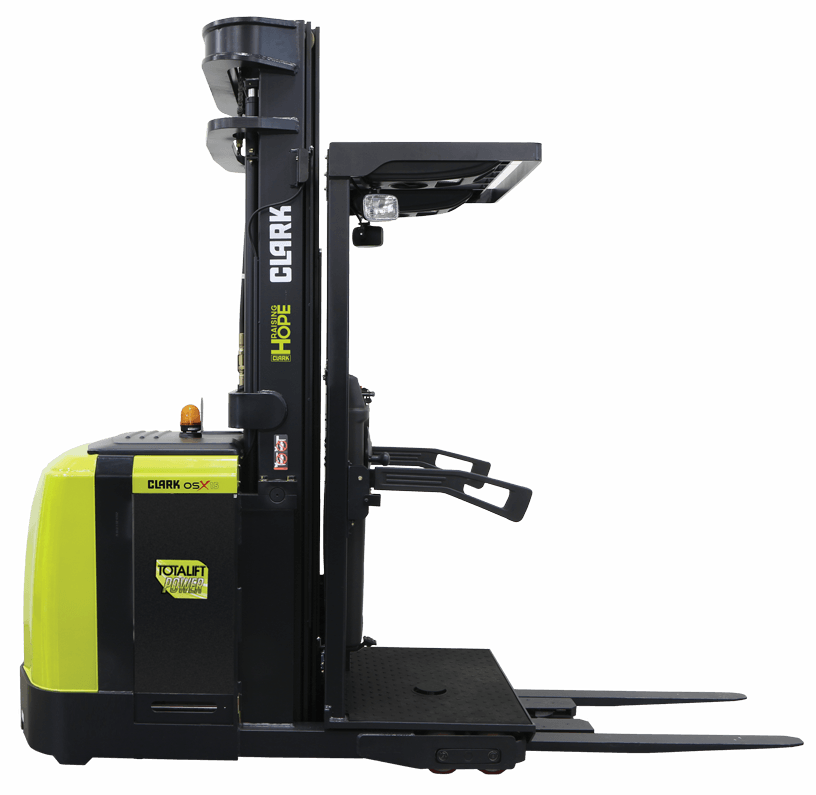

OSX15

NARROW-AISLE: 100% AC Electric 24 or 36 Volt

3000 lbs

(1360 kg)

MORE INFORMATION:
FEATURES
The all new CLARK OSX 15 has raised the bar for order selectors. High performance and best-in-class operator comfort combined with generous standard features positions this order selector above the competition.

100% AC WITH PLUG-IN ENCODER
FEWER PARTS & MINIMUM WEAR
- Enclosed
- Brushless
THERMAL PROTECTION
- Cooler operation
- Stall protection
- Smart lift lockout.
- One motor for both steering & hydraulics.
THE AC SYSTEM
Delivers faster acceleration as well as superior lifting speeds.

THE PLUG-IN ENCODER
External mounting on the drive and pump motors allow them to be serviced without removing motors from the truck

HIGH PERFORMANCE:
- 24 VOLT: Offers excellent performance and run time.
- 36 VOLT: Can achieve quicker lift speeds and more responsive acceleration with higher Kwh batteries.
ENHANCED PERFORMANCE
Improves productivity while reducing energy consumption.

WIDE RANGE PALLET CLAMP
Accommodates a wide range of pallet stringer widths. Unlike some competitive units that require the choice of one size clamp or the other, our standard clamp will handle stringers up to 5" wide for increased flexibility and convenient, efficient pallet handling.

ARTICULATING LOAD WHEELS:
- CONSTANT CONTACT: Is maintained with the floor even when traveling over cracks, expansion joints or uneven floors
- CONTRIBUTE TO A SMOOTHER RIDE: For operator and truck components when operating under these conditions
- SIMPLE SNAP RING REMOVAL: Allows quick and easy removal/replacement of load wheels when necessary
OPERATOR COMPARTMENT:
- SPACIOUS PLATFORM: Handle provides secure grab point, increasing operator confidence. Excellent visibility in all directions
- LCD DASH DISPLAY: Diagnostic display w/ drive wheel direction indicator. Utilizes the latest LCD technology, is bright and easy to read and is sealed to keep out dust and contaminants.
- ADVANCED ON-BOARD DIAGNOSTICS: Facilitate troubleshooting and reduce downtime.
- ELECTRONIC POWER STEERING WITH AUTOCENTERING: Provides quiet, responsive, low-effort operation and assures the steer wheel is in the proper direction at key on.
UPRIGHT & CARRIAGE
- MAXIMUM VISIBILITY: Lift cylinders, chains and hoses are all mounted within the rail profile
- HYDRAULIC CUSHIONING VALVE: Silent staging reduces shock and vibration
- SHIMMABLE, SEALED & CANTED ROLLERS: Carriage has 8 rail rollers and 4 side thrust rollers to maximize load distribution and reduce free play
INFINITELY VARIABLE LIFT/LOWER
Allowing the operator to easily position the operator platform both when lifting and lowering gives the operator excellent control and promotes optimum productivity.

FULLY ADJUSTABLE/PROGRAMMABLE
A properly trained mechanic can completely customize parameters to Operator's Preference such as Acceleration Rate and Travel Speeds (separate FWD and REV).

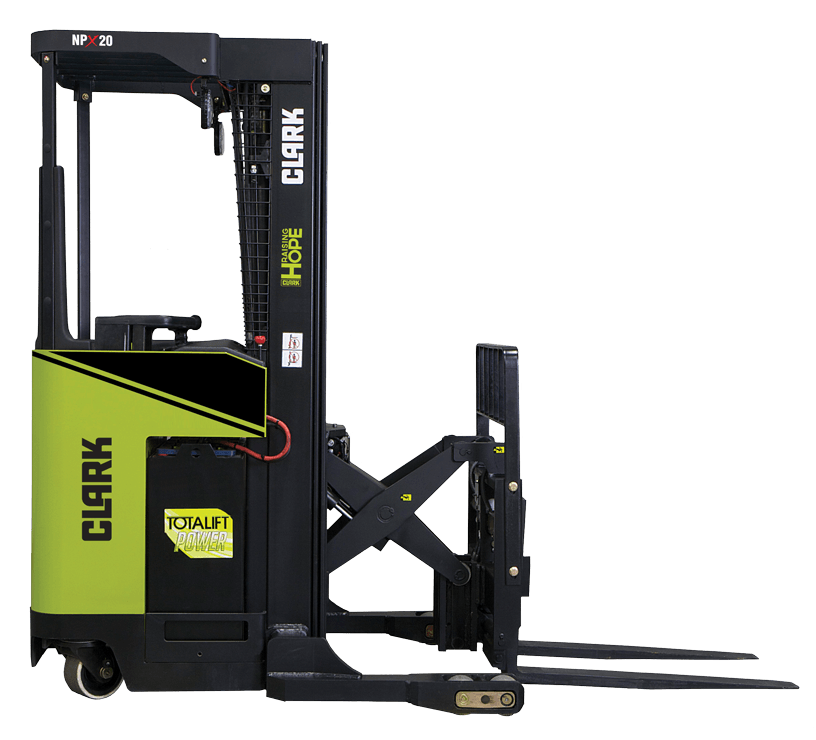

NPX15D/17/20/22

NARROW-AISLE: Electric 24 or 36 Volt

3000 / 3500 / 4000 / 4500 lbs

(1350 / 1600 / 1800 / 2000 kg)

MORE INFORMATION:
FEATURES
The NPX family of reach trucks is designed to meet the performance and reliability requirements of today's demanding narrow aisle applications. Ergonomic design, maneuverability and energy efficiencycombine to achieve maximum productivity.

STANDARD EQUIPMENT
- Key switch
- Load backrest extension
- Electronic horn
- Rear overhead guard post protection
- Heavy-duty battery rollers
- Battery retainers
- Lever type battery connect-disconnect
- Metal capacity plate
HEAVY DUTY DRIVE AND HYDRAULIC MOTORS
STATE OF THE ART TECHNOLOGY
- Advanced 100% AC motors and controllers.
- Electro-mechanical brakes.
- Electronic speed-sensitive power steering.
- High efficiency hydraulic system.
BRAKES
- Primary (electric) braking provided through electronic controller
- Service brake engages automatically at zero travel
- Electro-mechanical brake reduces components and complexity
- Smooth, consistent braking in all load and travel conditions
CLARK DESIGNED CONTROL HANDLE
- 3-Function design allows simultaneous operation of (1) travel, (2) lift or lower AND (3) one additional hydraulic function. Integrated Mini-Thumbstick
- Controls Tilt & Reach + Side Shift. Makes for One Smooth Operator
- Handle is 100% proportional using (solid state) Hall-effect components.
- Designed to fit a wide range of hand sizes and still give that "custom fit" feel for better ergonomics and less operator fatigue.
RELIABLE PERFORMANCE
The CLARK NPX 100% AC design, matched with energy-efficient components, delivers improved acceleration, travel and lifting speeds, increasing productivity. Operators have greater control to move product with more confidence. Reliable components require less service lowering overall costs.

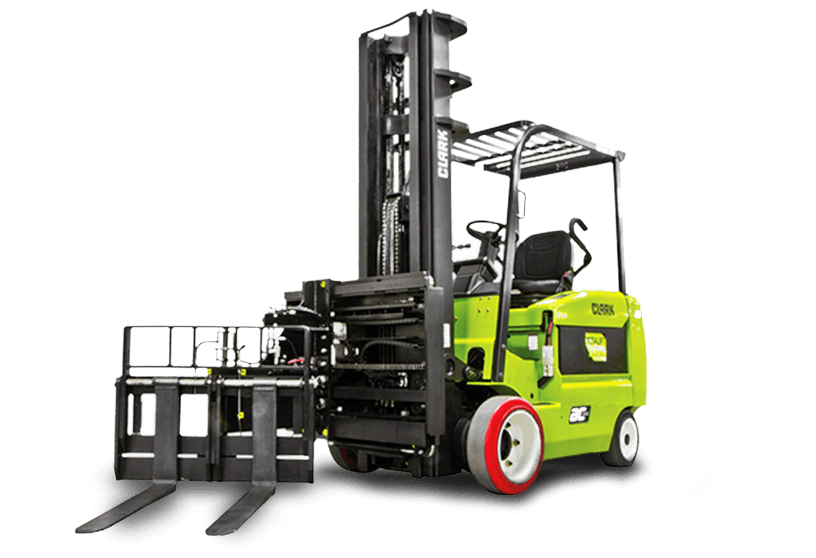

TURRET TRUCK: ECX30/C30C

NARROW-AISLE:

4-WHEEL 100% AC ELECTRIC 36/48 VOLT: 6000 lbs (3000 kg)

4-WHEEL IC-CUSHION LPG: 6000 lbs (3000 kg)

MORE INFORMATION:
Applications:
Manufacturing, Warehousing, and Narrow Aisle applications w/ combined Shipping/Receiving operations
- The CLARK I-Beam style nested rails are stiffer for side-loading due to larger symmetrical sections. Additional modifications to the upright and carriage design are made so that the turret attachment is integral; this results in higher capacities and less deflection than the competition.
- Four external side thrust carriage rollers further limit deflection.
- Adjustable flow controls simplify set-up and reduce heat to the hydraulics systems.
- The “standard” model is a cushion truck with 6000 lbs. nominal capacity. Since lateral stability is the determining factor, increasing to a 6500 lbs. model provides no additional capacity.
Maintenance Friendly: The turret attachment is built with standard drive components. Fast parts availability and minimized service costs keep uptime to a maximum.

Compound & Traverse Sideshift: Allows for greater lateral movement in the aisle, reducing truck front end width.

180deg Pivoting Action: Operator can work either side of the aisle, regardless of truck orientation.

Features & Options:
Compound & Traverse Sideshift: Allows for greater lateral movement in the aisle, reducing truck front end width.

180 Degree Pivoting Action: Operator can work either side of the aisle, regardless of truck orientation.

Maintenance Friendly: The turret attachment is built with standard drive components. Fast parts availability and minimized service costs keep uptime to a maximum.

Why A Turret Truck?
The most unique feature of the full 180deg pivoting carriage design is that the truck can pick/place a 48 inch long load in a 72 inch unguided aisle on either
side of the lift truck*. This gives the operator virtually unlimited load retrieving options and lower cycle times.

The CLARK turret truck can also be used outside the rack area to pick and carry loads. Use one truck
to unload a trailer, carry the load to a narrow aisle rack area, and place it in the rack on either side. The potential cost savings makes the CLARK turret
truck the ultimate side-shifter. (A special attachment with tilting forks is also available.)
