CLARK: Electric Forklifts

FEATURES

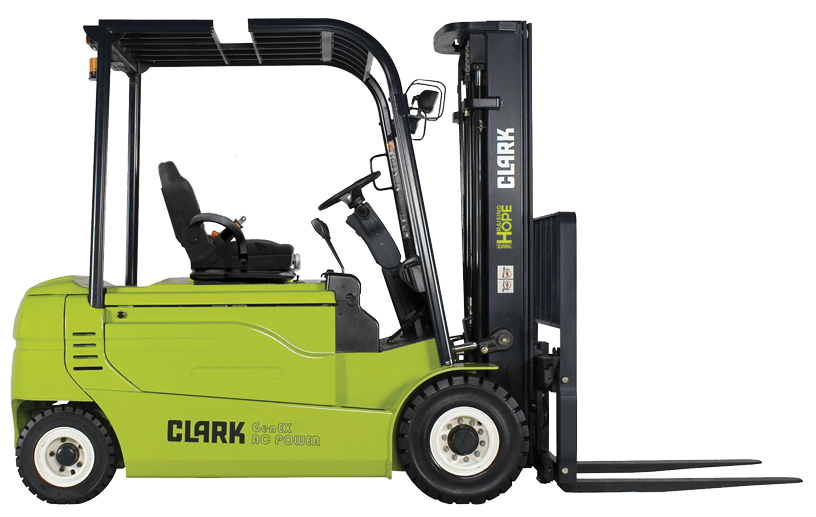

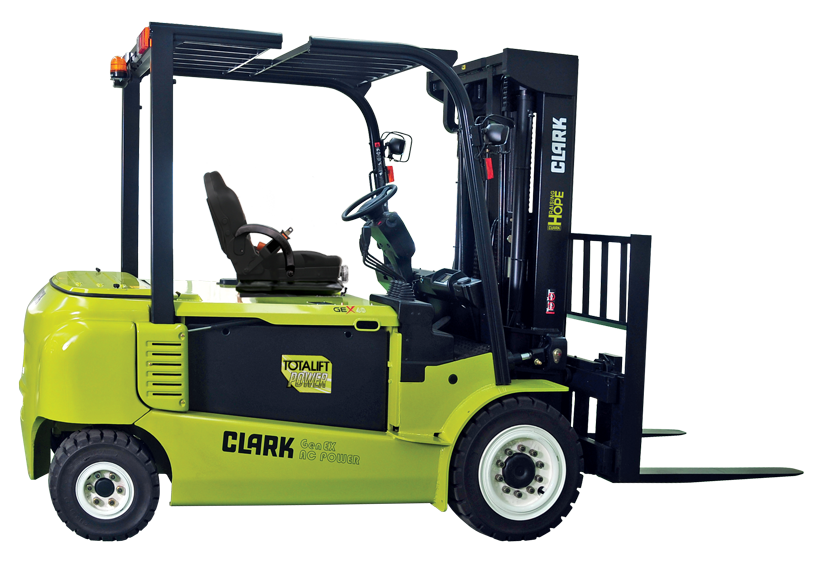

In the past, one truck would be used for outdoor applications and another truck would be used for indoor warehousing. Now one GEX can handle both environments, leaving you with the thought... two "hands" aren't always better than one.

DRIVE MOTORS & AXLES

FEWER PARTS & MINIMUM WEAR

• Enclosed, brushless
• Thermal and stall protection
• Dual/powered reversing for tighter turns
• Suitable for Wet Applications
• Same motors for E & EE

80 VOLT 100% AC SYSTEM

HIGH PERFORMANCE

Rivals IC truck performance in speed, acceleration and gradeability

MORE EFFICIENT SYSTEM

Higher voltage = lower line loss & heating = greater efficiency

BETTER SUITED TO RAPID CHARGE

Only requires one receptacle via single battery connector

INCREASED BATTERY CAPACITY

GEX 20/25 can accommodate 54 kwh battery

GEX 30/32 can accommodate 60 kwh battery

POWERED REVERSING DRIVE MOTORS

2-WHEEL DRIVE

Provides added traction, especially on wet or uneven surfaces

WILL NOT SCUFF TIRES

Inside wheel power reverses in tight turns preventing scuffing of steer tires like conventional 4-wheel trucks

HALL EFFECT STEER SENSOR

Relays steer tire position to control

REGEN & WET DISC BRAKES

THREE FORMS OF REGENERATIVE BRAKING

1. Accelerator release (Proportional to accelerator position)
2. Change of direction (Proportional to accelerator position)
3. Service brake (Foot brake)

WET DISC BRAKES

• Enclosed and oil cooled for smooth, quiet operation
• Built with long life lining material
• Less downtime

EASILY SERVICED

HINGED REAR CONTROL COVER

Supported on gas springs for easy service access from a standing position

ON-BOARD DIAGNOSTICS

Allow servicing mechanic to check fault codes without service tool

UPRIGHT & CARRIAGE

MAXIMUM VISIBILITY

Nested I-channel allows space for cylinders, hoses and chains

HYDRAULIC CUSHIONING VALVE

Silent staging reduces shock and vibration

SHIMMABLE, SEALED & CANTED ROLLERS

Carriage has 6 rollers to maximize load distribution and reduce free play

STABLE PLATFORM

LOW CENTER OF GRAVITY

CLARK moved back the steer axle, dropped the battery compartment and moved all major components lower

CURVE CUTBACK

Reduces truck travel speed in turns

WIDE STANCE

Provides excellent lateral stability

LCD DASH DISPLAY

FULLY ADJUSTABLE/PROGRAMMABLE

The operator can select from 4 pre-set performance modes

ALARM CODES

Indicates the current alarm code and stores previous alarm codes for quick access

PASSWORD PROTECTED

Certain adjustments can be password protected to allow only authorized operators to make adjustments

FEATURES

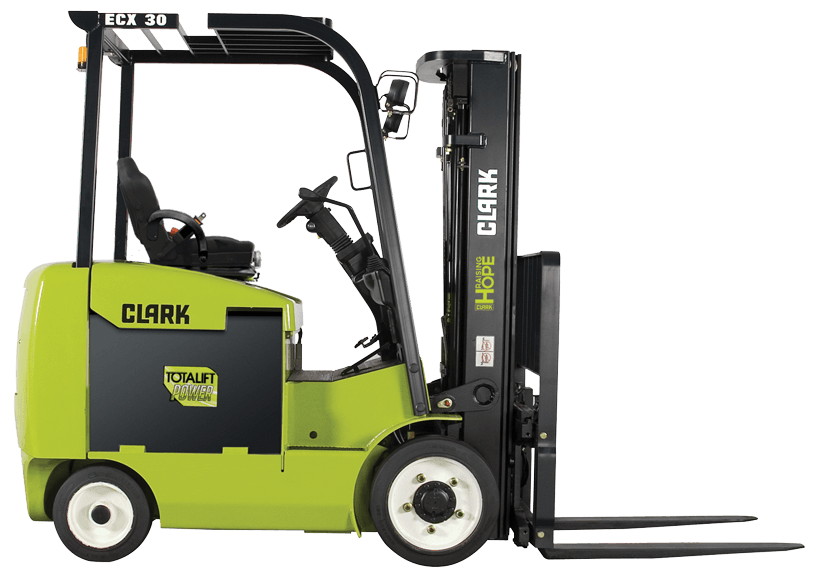

The CLARK ECX series of electric lift trucks is the ideal choice for demanding manufacturing and distribution applications. Superior ergonomic design, operator comfort, safety and outstanding truck performance are backed by the oldest name in lift trucks.

100% AC SYSTEM:

FEWER PARTS & MINIMUM WEAR:

• Enclosed, brushless smart lift lock out
• Thermal & stall protection
• One motor for both steering and hydraulics
• NO BRUSHES TO CHANGE OR COMMUTATOR TO TURN...EVER

HEAVY DUTY, HIGH TORQUE DRIVE MOTOR

• Produces twice the draw bar pull of some competitors
• Climbs grades previously limited to IC trucks

STALL PROTECTION & REGENERATIVE BRAKING

RUGGED CAST STEER AXLE:

• MAXIMUM PROTECTION: Dual action steer cylinder and fittings are protected while allowing easy access to the components
• PROVEN DRIVE AXLE: ONE-PIECE HOUSING: The CLARK ED30 reduces the possibility of leaks
• SMOOTH, QUIET OPERATION: Utilizes durable helical gears

FULLY ADJUSTABLE/PROGRAMMABLE:

COMPLETELY CUSTOMIZE PARAMETERS TO OPERATOR'S PREFERENCE

Acceleration rate, decelaration rate and separate FW/RV max speed

TRACTION CONTROL:

• FULLY PROGRAMMABLE: Up to 20 performance parameter settings such as acceleration, creep speed and regen braking rate can be adjusted to meet your requirements
• SPEED LIMITING: Maximum travel speed can be programmed to your requirements and if necessary, forward and reverse can be set independently
• CONTROLLED DESCENT: When the controller senses movement but no accelerator pedal input, it signals the drive motors to apply counter torque allowing the truck to slowly descend an incline in a controlled manner
• RAMP START: Added torque eliminates roll back when starting on an incline

UPRIGHT & CARRIAGE:

• MAXIMUM VISIBILITY: Nested I-channel allows space for cylinders, hoses and chains
• HYDRAULIC CUSHIONING VALVE: Silent staging reduces shock and vibration
• SHIMMABLE, SEALED & CANTED ROLLERS: Carriage has 6 rollers to maximize load distribution and reduce free play

OPERATOR COMPARTMENT:

• FULLY ADJUSTABLE SEAT: Molded for support with non-cinching, retractable seat belt
• TILT STEERING COLUMN: Adjust to suit operator and provides easier entry/exit
• COWL MOUNTED HYDRAULIC CONTROLS: Located and sized for ease of use
• THICK MOLDED FLOOR MAT: Reduces vibration and noise level to improve operator comfort

FEATURES

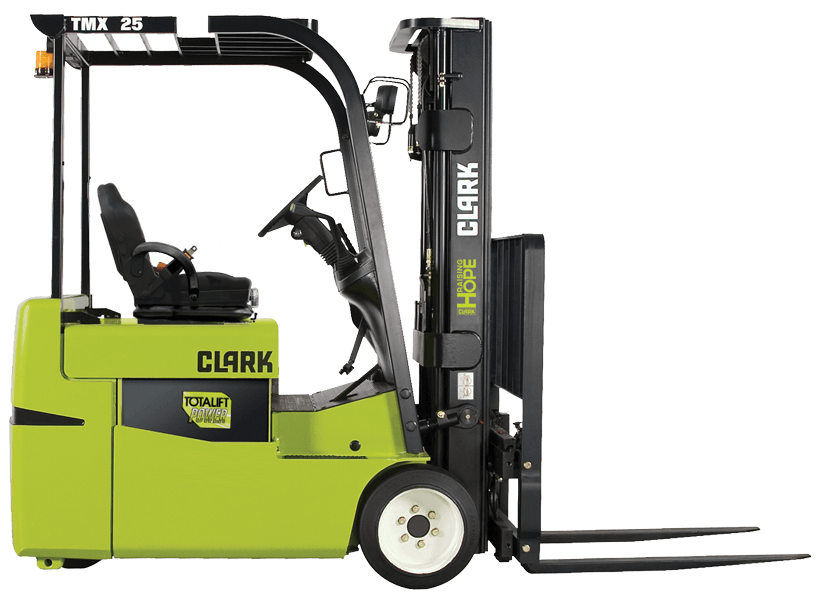

The TMX continues the evolution of our three-wheel design with the efficiency, low maintenance and power of a 100% AC System. This rugged yet comfortable design delivers superior capacities and the quality, dependability and maneuverability you've come to expect from CLARK; the inventor of the three-wheel forklift.

100% AC SYSTEM:

FEWER PARTS & MINIMUM WEAR

• Enclosed, brushless smart lift lock out
• Thermal & stall protection
• One motor for both steering and hydraulics
• 13% INCREASED RUNTIME OVER DC EQUIVALENT
• Standard battery compartment accommodates a 1240 AH battery
• Optional battery compartment available for a full 1550 AH battery
• NO BRUSHES TO CHANGE OR COMMUTATOR TO TURN...EVER

PROVEN STEER AXLE: ADDED STRENGTH

The standard single-tire steer axle and an optional dual-tire steer axle are made from high strength cast steel and heat treated for additional strength

PROVEN DRIVE AXLE: QUIET, DEPENDABLE OPERATION

Incorporates spiral bevel and helical gear sets

Design has over 20 million field hours in heavy-duty application

FULLY ADJUSTABLE/PROGRAMMABLE:

COMPLETELY CUSTOMIZE PARAMETERS TO OPERATOR'S PREFERENCE

Acceleration rate, decelaration rate and separate FW/RV max speed

STANDARD HYDRAULIC PUMP CONTROL:

FULLY PROGRAMMABLE

Lift speed is fully proportional to lift lever position

PROGRAMMABLE SPEEDS

Tilt and auxiliary functions run at programmable fixed speeds

TRACTION CONTROL: FULLY PROGRAMMABLE

Up to 20 performance parameter settings such as acceleration, creep speed and regen braking rate can be adjusted to meet your requirements

SPEED LIMITING

Maximum travel speed can be programmed, forward and reverse can be set independently

CONTROLLED DESCENT

Controller senses movement - no accelerator pedal input = drive motors apply counter torque allowing the truck to slowly descend an incline in a controlled manner

RAMP START

Added torque eliminates roll back when starting on an incline

UPRIGHT & CARRIAGE:

MAXIMUM VISIBILITY

Nested I-channel allows space for cylinders, hoses and chains

HYDRAULIC CUSHIONING VALVE

Silent staging reduces shock and vibration

SHIMMABLE, SEALED & CANTED ROLLERS

Carriage has 6 rollers to maximize load distribution and reduce free play

OPERATOR COMPARTMENT:

FULLY ADJUSTABLE SEAT

Molded for support with non-cinching, retractable seat belt

TILT STEERING COLUMN

Adjust to suit operator and provides easier entry/exit

COWL MOUNTED HYDRAULIC CONTROLS

Located and sized for ease of use

THICK MOLDED FLOOR MAT

Reduces vibration and noise level to improve operator comfort

FEATURES

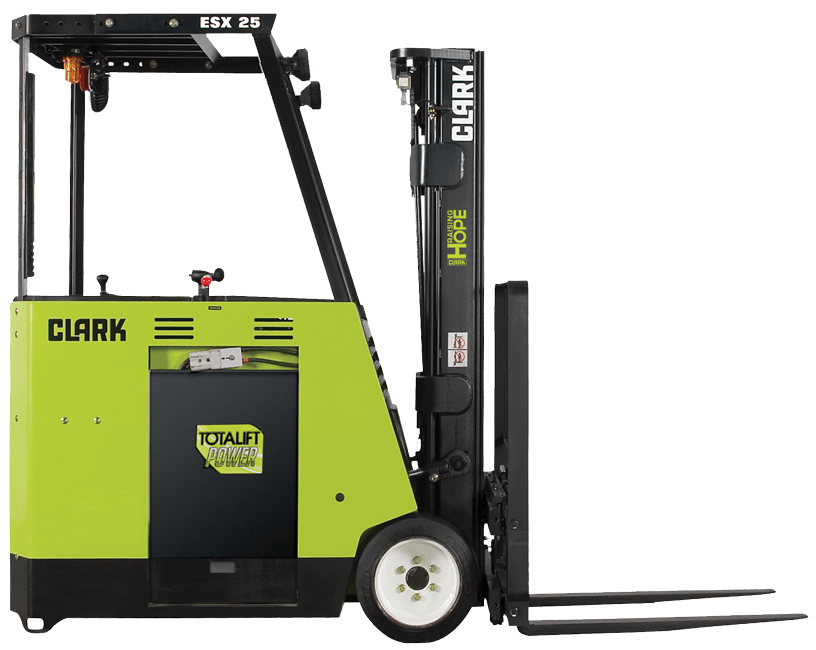

Aisle space is always at a premium. So the 100% AC ESX is not only designed to be fast, energy efficient and inexpensive to operate, we also made sure that your operators can use the ESX to negotiate those tighter spaces. "Well-Engineered" would be an understatement, so let's go with... "Tenacious".

100% AC SYSTEM:

FEWER PARTS & MINIMUM WEAR

• Enclosed, brushless smart lift lock out
• Thermal & stall protection
• One motor for both steering and hydraulics

NO BRUSHES TO CHANGE OR COMMUTATOR TO TURN...EVER

HEAVY DUTY DRIVE MOTORS AND AXLES

Larger motors = cooler operation = increased efficiency

EASILY SERVICEABLE AND ACCESSIBLE

ENCLOSED ELECTROMAGNETIC BRAKES:

SPRING APPLIED/EM RELEASE

No master cylinder, no seals, no hydraulic fluids = no leaks

ANTI-ROLLAWAY AND RAMP HOLD FEATURE

Increased controllability and enhanced safety

ON THE FLY SELF-CHECKING SOFTWARE

Increased controllability and enhanced safety

REBUILDABLE, EASILY SERVICEABLE

TRUE MULTIFUNCTION CONTROL:

CLARK DESIGNED CONTROL HANDLE

3-function design allows simultaneous operation of (1) travel, (2) lift or lower and (3) one other hydraulic function

INTEGRATED MINI THUMBSTICK

Controls tilt and side shift + auxiliary function

Two-way fork leveling [thumbstick + right button] (see Product Enhancement Package)

"CUSTOM FIT" FEEL

Molded to fit a wide range of hand sizes for better ergonomics and less operator fatigue

PRODUCT ENHANCEMENT PACKAGE:

TWO-WAY FORK LEVELING

Levels backward and forward reducing broken pallets or bent racks

FULL RANGE OF TILT

Full forward tilt when forks are low allowing for broken pallet pick up and general chiseling operation

FASTER TILT SPEEDS

Allows for faster cycle times when forks are low

TRAVEL SPEED REDUCTION

Limits the speed of the truck when the forks are elevated to promote safer operation when dealing with high loads

FULLY ADJUSTABLE/PROGRAMMABLE:

COMPLETELY CUSTOMIZE PARAMETERS TO OPERATOR'S PREFERENCE

Acceleration rate, decelaration rate and separate FW/RV max speed

ELECTRO-HYDRAULIC FULLY PROPORTIONAL VALVE:

FEATHERABLE / ADJUSTABLE / SEALED

Pump motor speed ramps to match hydraulic requirements

FLY-BY-WIRE

No mechanical linkage = no wear

LESS BATTERY USE AND NO OVERHEATING

Increases ease of operation and allows faster cycle times

FEATURES

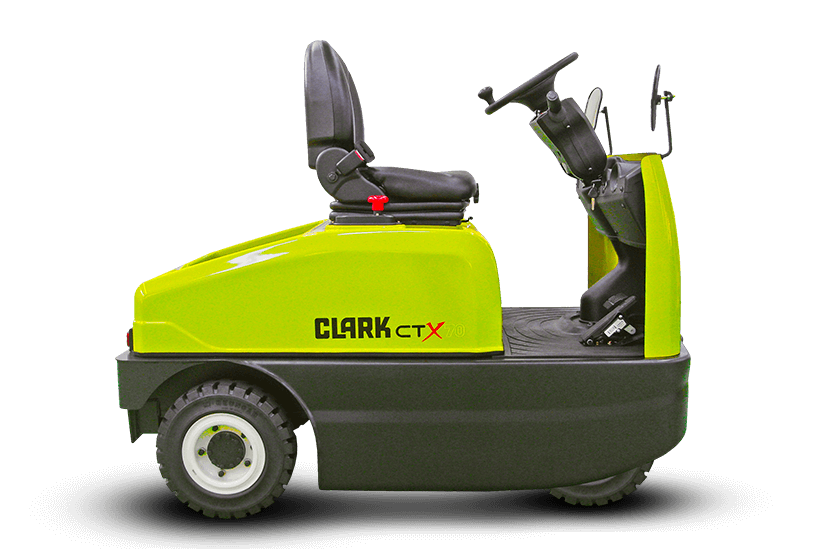

The reinforced all steel frame, solid pneumatic tires, large drum brakes, and optional weather enclosure ensures that the CLARK CTX 3-wheel Tow Tractor operates with the same ease of use, flexibility, and rugged durability that has been at the center of CLARK's manufacturing of material handling trucks for nearly 100 years.

48 VOLT 100% AC SYSTEM:

FULLY ENCLOSED:

Keeps out dust and contaminants

Wet environment is not an issue

NO BRUSHES TO CHANGE OR COMMUTATOR TO TURN...EVER

• Routine brush changes are eliminated
• No need to pull the motor to turn and undercut the commutator
• Much less likely to burn-out motor during a stall

TWO FORMS OF REGENERATIVE BRAKING

1. Change of direction (proportional to accelerator position)
2. Throttle release (proportional to accelerator position)

ADVANCED THERMAL PROTECTION

Prevents heat damage to the motor and control

STABLE PLATFORM:

• LOW CENTER OF GRAVITY: CLARK moved back the steer axle, dropped the battery compartment and moved all major components lower
• WIDE STANCE: Provides excellent lateral stability

COMPLETELY CUSTOMIZE PARAMETERS TO OPERATOR'S PREFERENCE

Acceleration rate, deceleration rate and separate FW/RV max speed

OPERATOR COMPARTMENT:

• FULLY ADJUSTABLE, FULL SUSPENSION SEAT: Molded for support, reduces operator fatigue, and increases productivity
• TILT STEERING COLUMN: Adjust to suit operator and provides easier entry/exit
• THICK MOLDED FLOOR MAT: Reduces vibration and noise level to improve operator comfort
